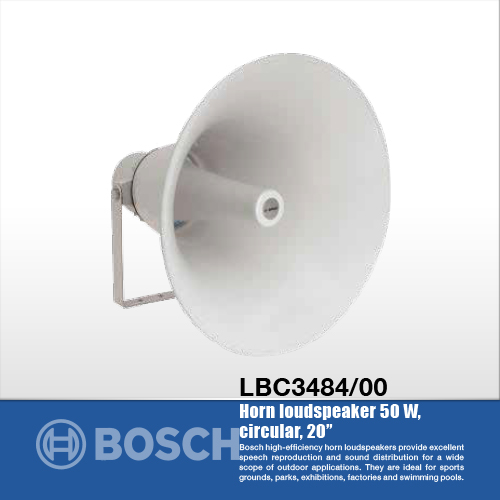

BOSCH LBC 3484/00

Technical Specifications
Electrical

• Maximum power 75 W

• Rated power 50 / 25 / 12.5 W

• Sound pressure level at 50 W / 1 W (1 kHz, 1 m) 130 dB / 110 dB (SPL)

• Effective frequency range (-10dB)350 Hz to 4 kHz

• Opening angle at 1 kHz/4 kHz (-6 dB) 60° / 28°

• Rated voltage 100 V Rated impedance 200 ohm

• Connector Screw terminal block

Mechanical

• Dimensions (L x Dmax) 499 x 490 mm (20 x 19.6 in)
• Weight 6 kg (13.22 lb)

• Color Light grey (RAL 7035)

• Cable diameter 6 mm to 12 mm

• (0.24 in to 0.47 in)
• Environmental

• Operating temperature -25 ºC to +55 ºC (-13 ºF to +131 ºF)

• Storage temperature -40 ºC to +70 ºC (-40 ºF to +158 ºF)

• Relative humidity <95%
