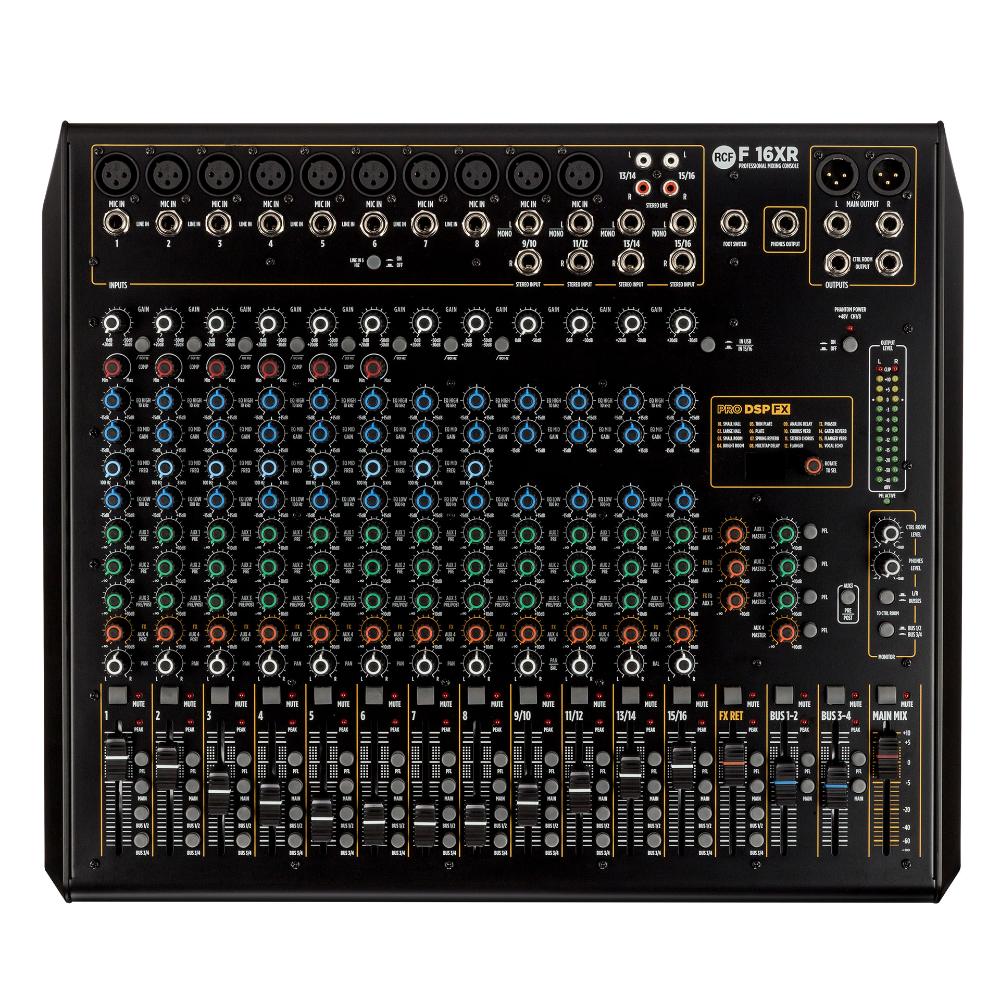

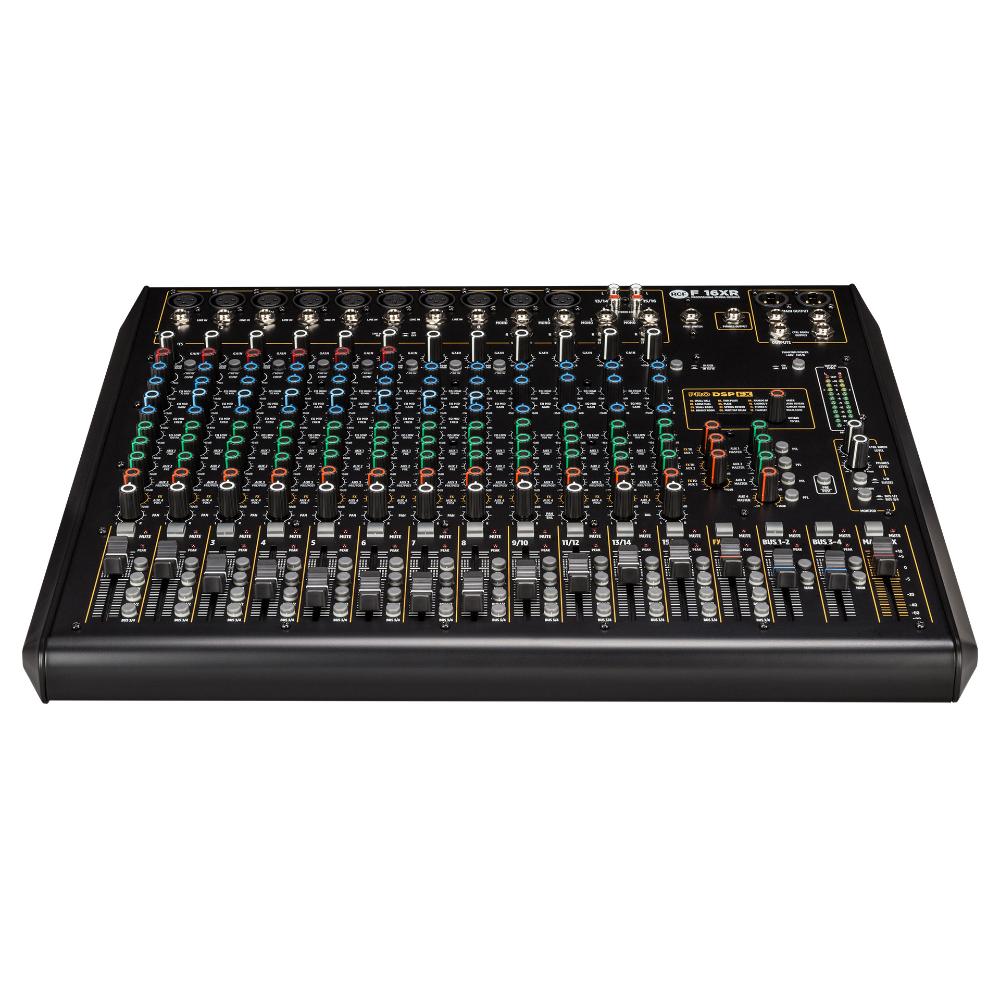

RCF F 16XR

FEATURES

• 10 Mic preamp inputs, 4 mono line inputs
• 4 Stereo line inputs
• PRO DSP FX onboard with 16 presets
• Stereo recording and playback via USB port
• 6 single control compressors
• Balanced main output +28 dB (Stereo XLR + TRS)
• Two stereo output busses and 4 aux sends (2 pre, 1 pre/post, 1 post)
• 60 mm faders
• Internal universal power supply
• Designed and engineered in Italy

Electrical specifications

• FREQUENCY RESPONSE : 20 Hz ÷ 20 kHz
• THD+N, 20DB GAIN, 0DBU OUT (% A-WEIGHTED) : <0,02% A-Weighted
• POWER SUPPLY : Internal
• VOLTAGE REQUIREMENTS : 100 V – 240 V
• POWER CONSUMPTION (W) : 30 W

Inputs

• GAIN RANGE : 0 dB ÷ -50 dB
• GAIN SELECTION : 20 dB ÷ -30 dB
• HI-Z LINE INPUTS IMPEDANCE (MOHM) : 1 Mohm
• HI-Z LINE INPUTS : 1

INPUT NOISE LEVEL (DBU A-WEIGHTED) : -124 dBu A-Weighted

• MIC INPUTS IMPEDANCE (KOHM ): 14 kohm
• LINE : 8
• LINE INPUT IMPEDANCE (KOHM) : 21 kohm
• LOW CUT : 80 Hz
• MIC : 10
• PHANTOM POWER +48V : Yes
• STEREO LINE : 4
• STEREO LINE GAIN SELECTION : 20 dB ÷ -30 dB
• STEREO LINE INPUT IMPEDANCE : 14 kohm

Outputs

• MAIN MIX : 1

CONTROL ROOM : Yes

• FX SEND : 1

AUX SEND : 3

• AUX OUTPUT : 4
• GROUP OUT : 4
• PHONES : 1

Outputs specifications

• MAIN OUT LEVEL (DBU) : 28 dBu
• AUX OUT LEVEL (DBU) : 28 dBu

GROUP OUT LEVEL (DBU) : 28 dBu

• PHONES OUT IMPEDANCE (OHM) : 150 ohm

PHONES OUT LEVEL (DBM) : 10 dBm

Compressors

• RCF COMPRESSORS : n°6 Single Control Compressors on Channels 1 to 6

EQ

• INPUT CHANNELS EQ : 1 Semi Parametric / 2 Shelving
• DESCRIPTION : High: +/-15 dB @ 10 kHz Shelving Mid: +/-15 dB @ Freq. sel. from 100Hz to 8kHz – Bell Low: +/-15 dB @ 100 Hz Shelving

Auxiliary sends

AUX : 2 PRE / 1 PRE/POST

• FX POST : 1

Internal Effects

• SEND EFFECTS : 1

USB audio

• TYPE : B
• PLAY TRK : 2
• REC TRK : 2
• SUPPORTED SAMPLE RATE (KHZ) : 44.1, 48.0 kHz

Other features

• FOOTSWITCH : Yes

Standard compliance

• CE MARKING : Yes

Physical specifications

• CABINET/CASE MATERIAL : Metal

COLOR : Black

Size

• DEPTH : 406 mm / 15.98 inches
• HEIGHT : 107 mm / 4.21 inches
• WEIGHT : 6.4 kg / 14.11 lbs
• WIDTH : 479 mm / 18.86 inches
